PE(LLD)-tubes:
"pneumatic" tubes worktemp. -50C/+80C
|
Art No.
|
OD
|
ID
|
Work Pressure (+20C)
|
|
6x4mm-P
|
6 mm
|
4 mm
|
8,5 bar
|
|
8x6mm-P
|
8 mm
|
6 mm
|
6,7 bar
|
|
8x5mm-P
|
8 mm
|
5 mm
|
12 bar
|
|
10x7mm-P
|
10 mm
|
7 mm
|
10 bar
|
|
12x9mm-P
|
12 mm
|
9 mm
|
6,5 bar
|
|
Art No.
|
OD
|
ID
|
Work Pressure (+20C)
|
|
22-P
|
1/8"
|
2,2 mm
|
8,7 bar
|
|
33-P
|
3/16"
|
3,2 mm
|
8,7 bar
|
|
44-P
|
1/4" (6,3mm)
|
4,3 mm
|
7,0 bar
|
|
55-P
|
5/16" (8 mm)
|
3/16 (4,8mm)
|
10,5 bar
|
|
66-P
|
3/8" (9,5mm)
|
1/4" (6,3mm)
|
6,0 bar
|
|
88-P
|
1/2" (12,7mm)
|
3/8" (9,5mm)
|
4,4 bar
|
PP-tubes:
Work temp. -25C/+80C (+100C)
|
Art No.
|
OD
|
ID
|
Work Pressure (+20C)
|
|
44-PP-nat *
|
1/4" (6,3mm)
|
4,3 mm
|
16 bar
|
|
66-PP-nat *
|
3/8" (9,5mm)
|
1/4" (6,3mm)
|
16 bar
|
|
88-PP-nat *
|
1/2" (12,7mm)
|
3/8" (9,5mm)
|
13 bar
|
|
M530PP1590158
|
3/4" (19 mm)
|
5/8" (16 mm)
|
10 bar
|
|
M530PP1900200
|
23 mm
|
19 mm
|
7 bar
|
PA-tubes (Nylon):
"pneumatic tubes" work temp.-40C/+80C
|
|
OD
|
ID
|
Work Pressure (+20C)
|
|
22
|
1/8" (3,2mm)
|
2,2 mm
|
*17-43 bar
|
|
33
|
3/16" (4,8mm)
|
3,6 mm
|
*17-43 bar
|
|
44
|
1/4" (6,3mm)
|
4,7 mm
|
*17-43 bar
|
|
55
|
5/16" (8 mm)
|
5,9 mm
|
*17-43 bar
|
|
66
|
3/8" (9,5mm)
|
7,1 mm
|
*17-43 bar
|
|
88
|
1/2" (12,7mm)
|
9,6 mm
|
*17-43 bar
|
EVA-tubes:
Work temp. -40C/+70C
|
Art No.
|
OD
|
ID
|
Work Pressure (+20C)
|
|
44-EVA
|
1/4" (6,3mm)
|
4,3 mm
|
4,6 bar
|
|
66-EVA
|
3/8" (9,5mm)
|
1/4" (6,3mm)
|
3,7 bar
|
|
88-EVA
|
1/2" (12,7mm)
|
3/8" (9,5mm)
|
2,8 bar
|

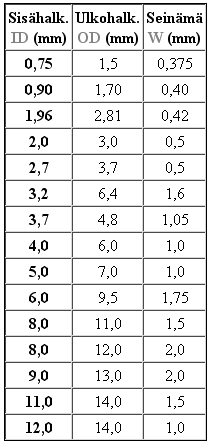

PVC-tubes:
"Medical grade" shore 70-75A
|
OD
|
ID
|
|
OD
|
ID
|
|
0,82
|
0,55
|
|
7
|
4
|
|
1,5
|
0,75
|
|
7
|
4,5
|
|
1,7
|
0,9
|
|
7
|
5
|
|
2,8
|
1,96
|
|
9
|
6
|
|
3
|
2
|
|
9,5
|
6
|
|
3,7
|
2,7
|
|
10
|
7
|
|
4,8
|
3,7
|
|
11
|
8
|
|
5
|
3
|
|
12,7
|
9,5
|
|
5,4
|
3
|
|
13
|
9
|
|
6
|
4
|
|
17,7
|
12,7
|
|
6,4
|
3,2
|
|
|
|
Also possible with other sizes (OD 0.5 to 43 mm) and hardnessess (shore 52-100A).

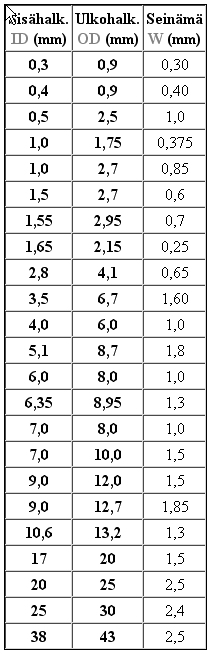

LD-PE tubes:
low pressure, work temp. -40C/+60C, FDA approved
|
OD
|
ID
|
|
OD
|
ID
|
|
0,9
|
0,3
|
|
6,7
|
3,5
|
|
0,9
|
0,4
|
|
8
|
6
|
|
1,75
|
1,0
|
|
8
|
7
|
|
2,15
|
1,65
|
|
8,7
|
5,1
|
|
2,5
|
0,5
|
|
9
|
6,35
|
|
2,7
|
1,0
|
|
10
|
7
|
|
2,7
|
1,5
|
|
12
|
9
|
|
2,95
|
1,55
|
|
12,7
|
9
|
|
4,0
|
1,0
|
|
20
|
17
|
|
4,1
|
2,8
|
|
25
|
20
|
|
6
|
4
|
|
30
|
25
|
|
|
|
|
43
|
38
|
Also other sizes (OD 0.4 to 43 mm).
TPU (PUR)-tubes
|
Plastic tubes and profiles
